Features:
- Supporting Wi-Fi or GSM monitoring
- Visual power flow screen
- Parallel/Multi invert function grid-tied and off-grid
- Compatible with main electrical grid voltages or power generators
- Self-consumption and feed-in to the grid
- Auto restart while AC is recovering
- Auto earth bond feature (Via a relay)
- Fully programmable controller
- Programmable supply priority for battery or grid
- Programmable multiple operation modes: on-grid/off-grid & UPS
- Configurable battery charging – current/voltage based on the application
- Configurable AC / solar / generator charger priority by LCD setting
- Overload/over-temperature/short-circuit protection
- Smart battery charger design for optimized battery protection
- Limiting function installed to prevent excess power overflow to grid
- Colourful touch LCD, IP65 protection degree
- DC couple and AC couple to retrofit existing solar system
- Max. 16 inverters in parallel; Support multiple batteries parallel
- Max. charging/discharging current of 190A

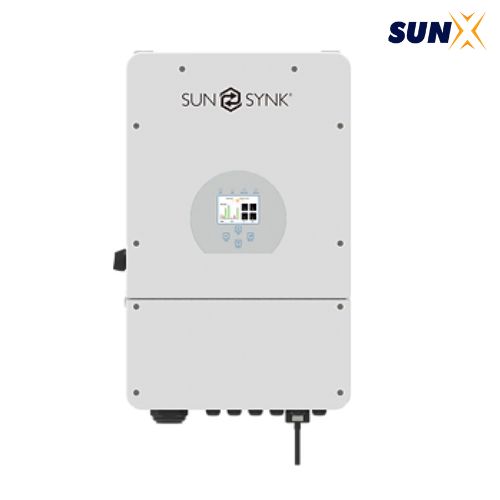

- 16kW super hybrid inverter
- Support storing energy from diesel generator
Battery Input Data:
- Battery type: Lead-acid or Lithium-ion
- Battery Voltage Range: 43~60V
- Max. Charging Current: 275A
- Max. Discharging Current: 300A
- Charging Curve: 3 Stages / Equalisation
- External Temperature Sensor: Yes
- Charging Strategy for Li-Ion Battery: Self-Adaptation to BMS
PV String Input Data:
- Max. DC Input Power: 18000W
- Max PV Input Voltage: 450V
- MPPT Range: 250V~450V
- Start-up Voltage: 150V
- PV Input Current: 22A + 22A
- Max. PV Isc: 26A + 26A
- No. of MPPT / Strings Per MPPT: 3/2
AC Output Data:
- Max. On-Grid AC Power: 16000W
- Max. Off-Grid AC Power: 13000W
- Peak Power (off-grid): 2 times of rated power, 10 S
- AC Output Rated Current: 65A
- Max AC Current: 70A
- Max Continuous AC Passthrough: 200A
- Frequency Range: 45Hz ~55Hz
- Voltage Range: 211V ~ 264V
- Grid Type: Single-Phase
- Current Harmonic Distortion: THD<3%(Linear load<1.5%)
Efficiency:
- Max. Efficiency: 97.6%
- Euro Efficiency: 97%
- MPPT Efficiency: 99.9%
Protection:
- Integrated: PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Surge protection
Certifications and Standards:
- Grid Regulation: VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699:2011, XP C15-712-3:2019-05
- Safety EMC / Standard: IEC62109-1, IEC62109-2, EN61000-6-1, EN61000-6-3
General Data:
- Operating Temperature Range: -25~55°C
- Cooling: Fan
- Noise: <30dB
- Communication with BMS: RS485; CAN
- Weight: 34.5Kg
- Size (mm): 422W x 702H x 281D
- Protection Degree: IP65
- Installation Style: Wall-mounted
- Warranty: 5 Years
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labor. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
