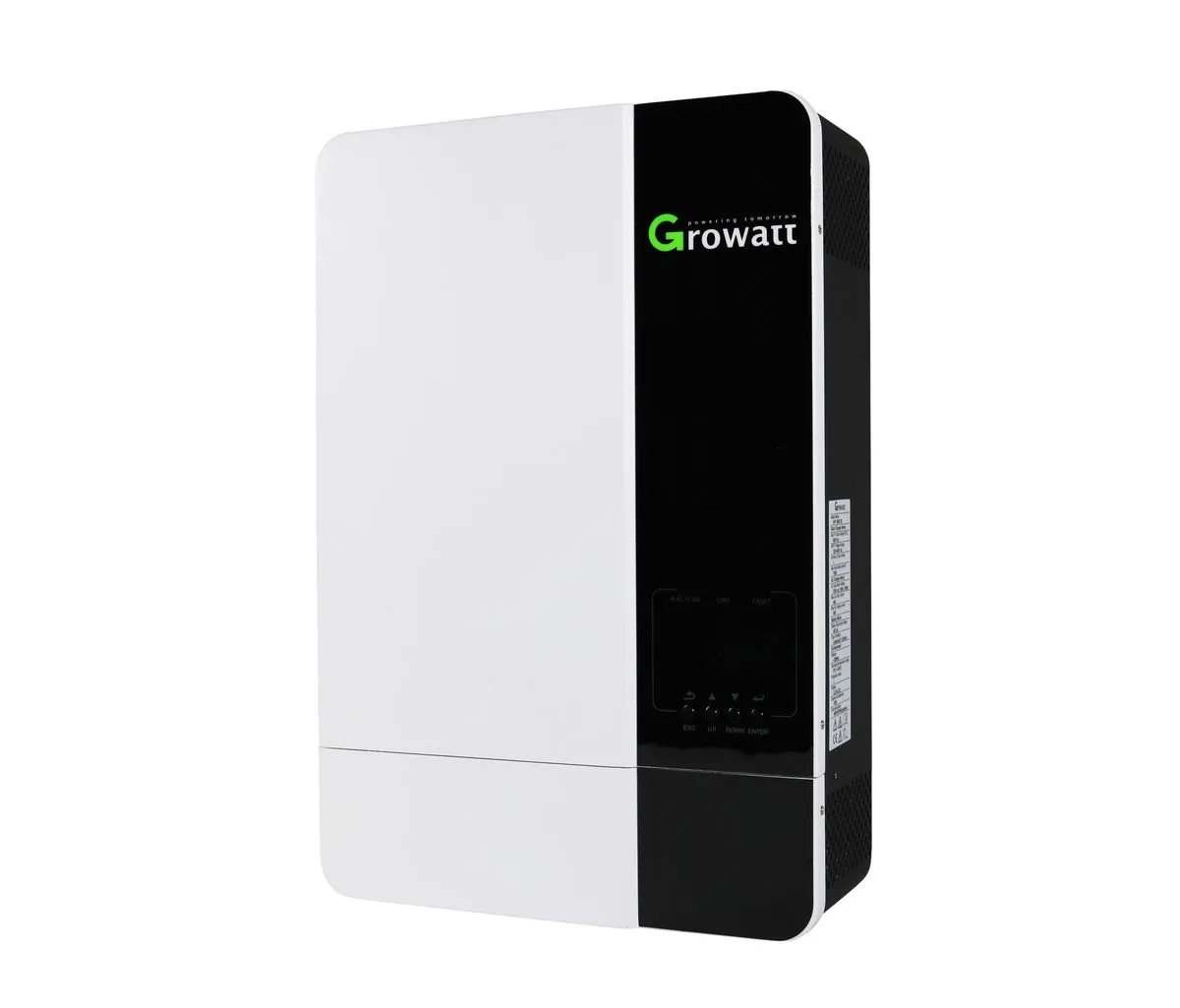

Growatt 5KVA SPF 5000 ES

• Model Name : SPF 5000 ES

• Solar Charger Mode :

1. Maximum PV input Voltage (VOC) : 450VDC
2. MPPT voltage range : 120 – 430VDC
3. Number of input strings : 1
4. Maximum PV input current (ISC) : 22
5. Maximum charge current : 100A

• AC Charger Mode :

1. AC Input : 230VAC, 50Hz/60Hz , 40A
2. Maximum AC charge current : 80A

• Battery Mode :

1. Battery Input : 48VAC, 117A
2. Type of battery : Lead-acid/ Lithium
3. Rated power : 5000VA/5000W
4. AC Output : 230VAC, 50Hz/60Hz, 22A

• Environment :

1. Altitude : <2000m
2. Operating temperature range : 0 degrees – +55 degree
3. Protection Class : 1
4. Rated short-time withstand current : 1CC< 6kA
5. Degree of protection : IP20
6. Communication : WIFI/GPRS (option)

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labor. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
