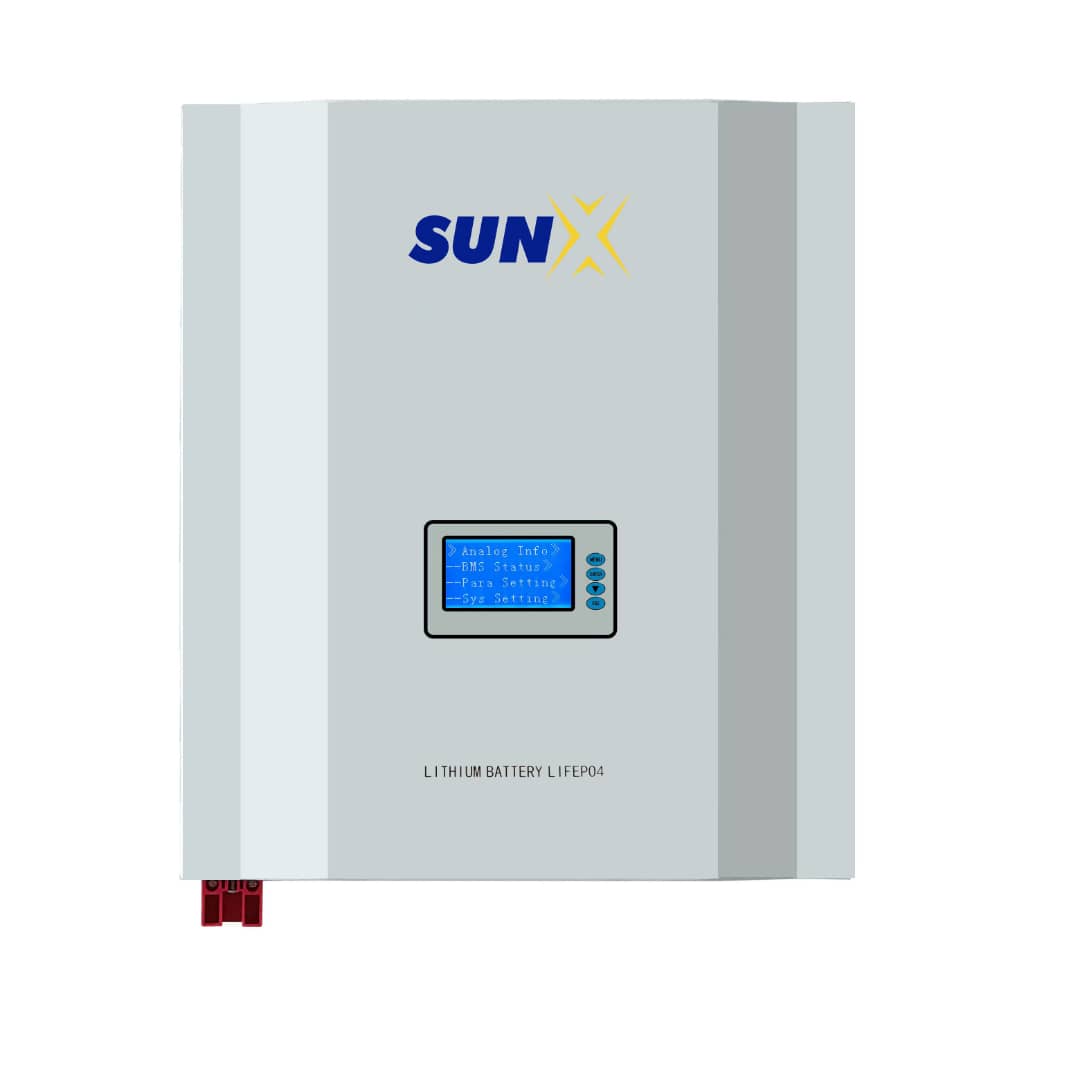

48V 5.5KWH SunX Lithium Ion Battery

• Total Power Consumption : 5.5kWh
• Model : AM-2 5.5kw
• Rated Capacity :

1. Min : 100AH
2. Typical : 100AH

• Internal Impedance : 150mohm
• Nominal Voltage : 52.6V
• Charging Voltage : 54.6V
• Charging Method : CC & CV
• Standard Charging Process : 0.2C (CC) Charge to 54.6V, when 54.6V (CV) is reached, charge rate will reduce to 0.02C(A) for full charge.
• Discharging Method : Constant Current Discharge
• Standard Discharge Method : Cells should be discharged at a constant current of 0.2C to 37.7V at 20 degree celsius +- 5 degree celsius
• Standard Discharge Time : 100AH
• Max.Continuous Discharge Current : 100A
• Discharge Cut-Off Voltage : 37.7V
• Battery Weight ( Max) : 39KG
• Battery Cycle Life ( Standard Charge & Discharge ) : The residual capacity is more than 70% of the first cycle discharge capacity).
• Operating Temperature :

1. Discharge : -20 degree celsius to 55 degree celsius
2. Charge : 0 degree celsius to 45 degree celsius
3. Storage : 10 degree celsius to 30 degree celsius

• Storage Temperature :

1. Within 1 Month : -5 degree celsius – +45 degree celsius
2. Within 3 Month : -5 degree celsius – +35 degree celsius
3. Within 6 Month : 0 degree celsius – +35 degree celsius

Float charging voltage: 52.65v
Even charge: 53.56v
Overcharge: 54.21v
Low voltage alarm: 42.9v
Cut-off discharge voltage: 39v

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labor. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
