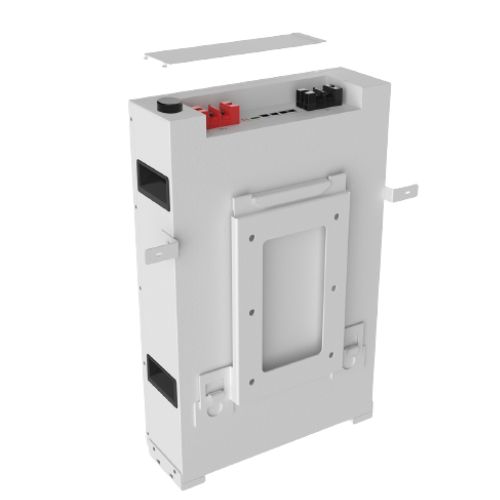

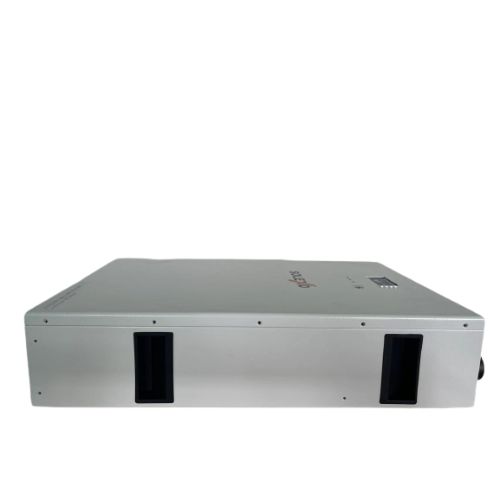

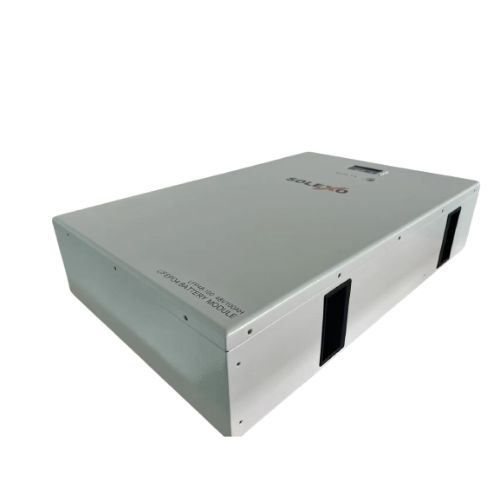

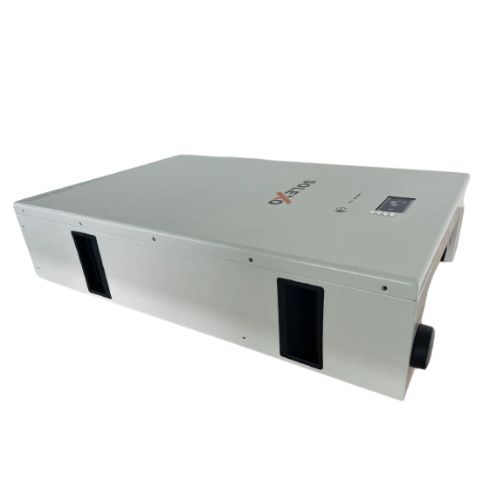

LFP48-100 48V100AH Wall
Mounted LiFePO4 Battery
General Feature
- Supports parallel expansion up to 16 parallel.
- Compatible with many mainstream inverter brands
- in the market.
- Installation mode can be wall hanging and floor.
- Built-in BMS system for battery life protection.
- Excellent safety: Lithium iron phosphate chemistry
- Different discharge depth life curves @0.5C,25℃
- eliminates the risk of explosion or combustion.
- Acceptable customization.
Bluetooth Connection
Short Circuit Protection
Temperature Protection
Charging Overvoltage Protection
Discharge Undervoltage Protection
OC/OD Protection
Application
Solar/Wind Energy Storage System
Communication Equipment
Emergency Power System
Medical Equipment
UPS Backup Power
Electric Vehicles/Electric mobility
Fire And Security System
Lighting
Product Parameter
Model LFP48-100
Rated Voltage 48V
Rated Capacity 100AH
Dimensions (mm) 425*145*660
Cycle life ≥6000 Cycles, 80%DOD, 25°C
Protection Built-in BMS
Operating Coltage Range 39V~55.5V
Charge Cut-Off Voltage 55.5V
Rated Output Power 2.4KW
Max. Peak Output Powe 4.8KW
Max. Charging Current 50A
Max. Discharge Current 50A
Charging Operating Temperature 0°C~55°C
Discharge Operating Temperature -10°C~60°C
Storage Ambient Temperature 0°C~60°C
Communication Interface
RS485/RS232/CAN Bluetooth, Wifi Can Be Customized
Installation Mode
Wall Mounted
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labor. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
