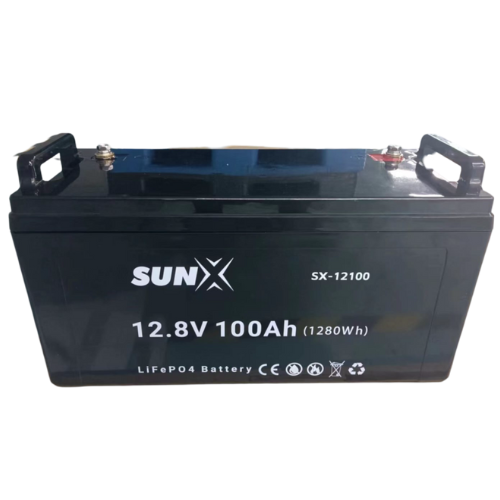

Product specification
|
Basic Parameters
|
Voltage
|
12.8V
|
||||||
|
Capacity
|
100Ah(Standard )
|
|||||||
|
Energy
|
1280Wh
|
|||||||
|
Internal resistance
|
≤50mΩ
|
|||||||
|
Standard cycles
|
≥3000(@0.5C,80%DOD,25℃)
|
|||||||
|
Self discharge
|
<5%(after 90 days storage)
|
|||||||
|
Standard warranty
|
2 years
|
|||||||
|
Size and weight
|
Height:
|
238mm
|
||||||
|
Width
|
173mm
|
|||||||
|
Length
|
408mm
|
|||||||
|
Weight
|
≤14Kg
|
|||||||
|
Electrical Parameters
|
Charging mode
|
CC/CV
|
||||||
|
Charging Current
|
0.2C/20A(Standard)
|
|||||||
|
1C/100A(Maximum constant current@25℃)
|
||||||||
|
Overcharge protection voltage
|
14.6V
|
|||||||
|
Discharge mode
|
CC/CV
|
|||||||
|
Over-discharge protection voltage
|
10.8V
|
|||||||
|
Discharge Current
|
0.2C/20A(Standard )
|
|||||||
|
1C/100A(Maximum constant current@25℃)
|
||||||||
General feature
- High density, small size and weight.
- With ABS case to replace lead acid battery.
- Higher power: two times power of lead acid battery,even high
- discharge rate, while maintaining high energy capacity.
- Configurable Bluetooth, LCD.
- Wider temperature range: -20℃~60℃.
Discharge Overcurrent Protection Short Circuit Protection
Temperature Protection Charging Overvoltage Protection
Discharge Undervoltage Protection Charging Overcurrent Protection
Application
- Solar/Wind Energy Storage System
- Communication Equipment
- Emergency Power System
- Medical Equipment
- UPS, Backup Power
- Electric Vehicles, electric mobility
- Fire And Security System
- Lighting
Compare with lead acid battery,lithium battery has advantages:
1.With advanced BMS with current limiting function;
2.Longer cycle life and service life;
3.Lower self discharge;
4.Higher energy intensity and conversion efficiency;
5.Excellent high temperature performance;
6.With Overcharge,over discharge and over temperature protection;
7.More compact volume and lighter weight;
8.More environmental friendly and safer
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labor. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
