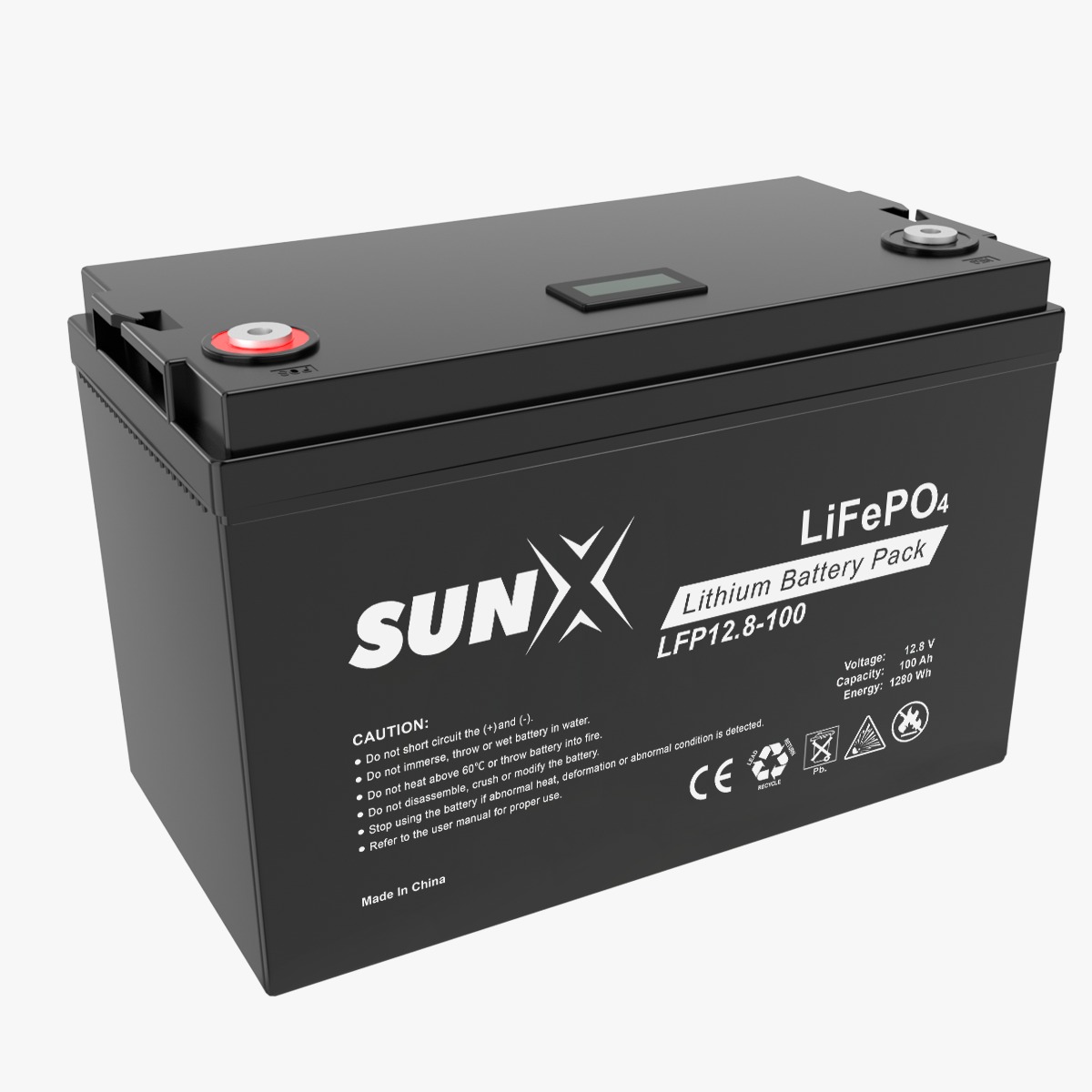

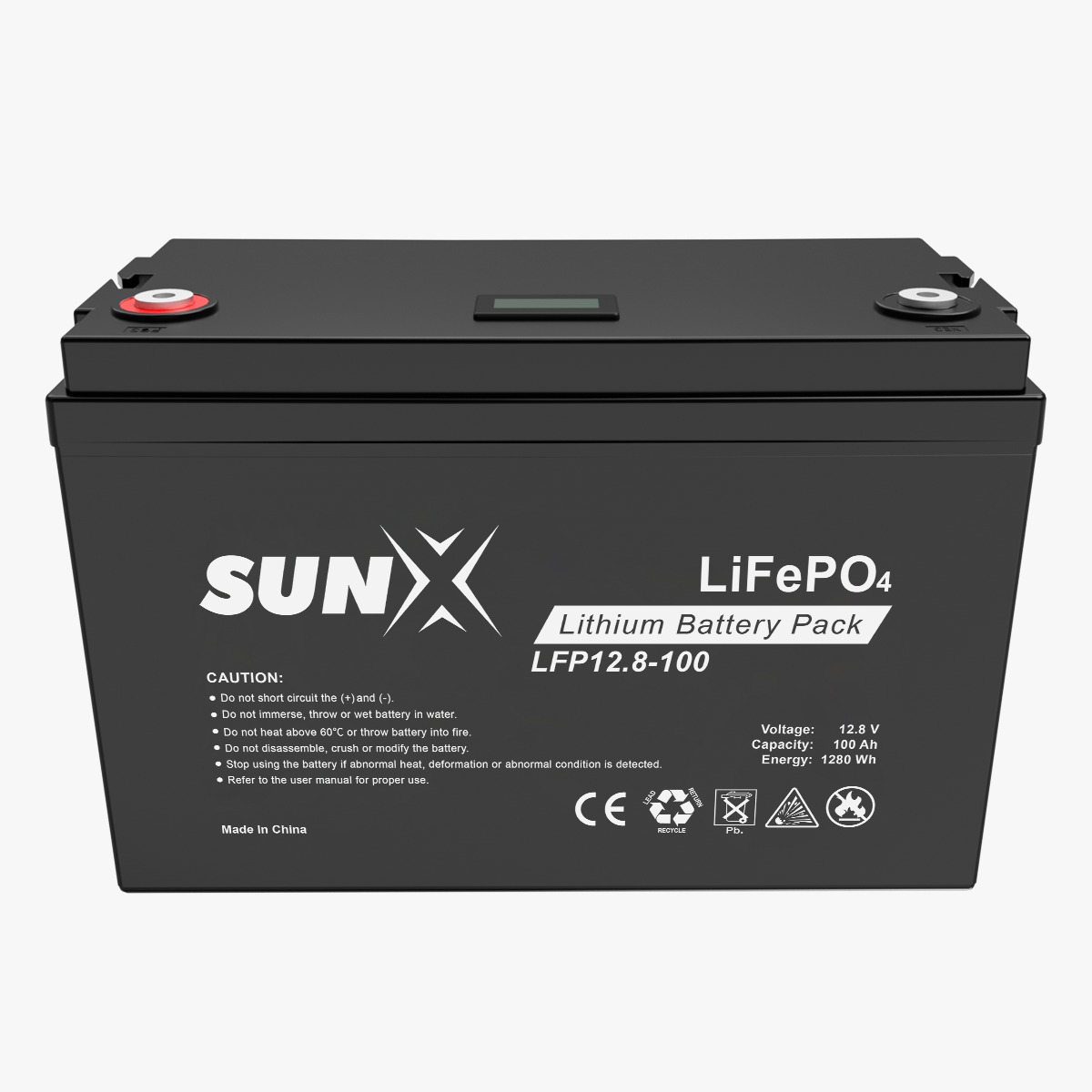

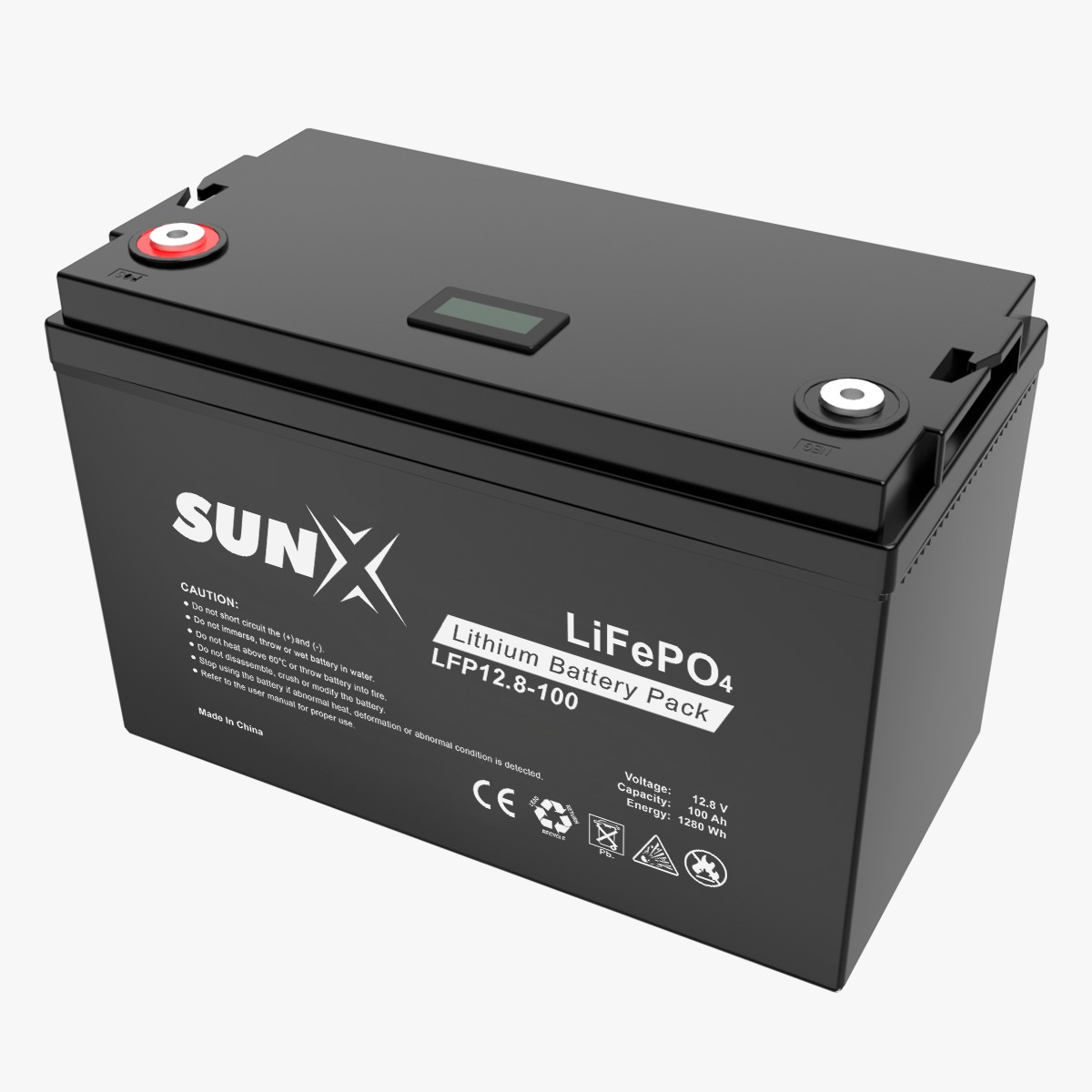

LFP12.8-100 12.8V100AH
LiFePO4 Battery Module
General feature
- High density, small size and weight.
- With ABS case to replace lead acid battery.
- Higher power: two times power of lead acid battery,even high discharge rate, while maintaining high energy capacity.
- Configurable Bluetooth, LCD.
- Wider temperature range: -20℃~60℃.
Discharge Overcurrent Protection Short Circuit Protection
Temperature Protection Charging Overvoltage Protection
Discharge Undervoltage Protection Charging Overcurrent Protection
Application
- Solar/Wind Energy Storage System
- Communication Equipment
- Emergency Power System
- Medical Equipment
- UPS, Backup Power
- Electric Vehicles, electric mobility
- Fire And Security System
- Lighting
PRODUCT PARAMETER
Model LFP12.8-100
Rated Voltage 12.8V
Rated Capacity 100AH (1280Wh)
Dimensions (mm) 331*173*220
Cycle life ≥3000 Cycles, 80%DOD, 25°C
Protection Built-in BMS
Operating Coltage Range 10V~14.8V
Charge Cut-Off Voltage 14.8V
Rated Output Power 0.64KW
Max. Peak Output Powe 1.28KW
Max. Charging Current 50A
Max. Discharge Current 50A
Charging Operating Temperature 0°C~55°C
Discharge Operating Temperature -20°C~60°C
Storage Ambient Temperature 0°C~60°C
Terminal M6
Configurable Bluetooth, LCD
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labor. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
